| Camera |
| Model |

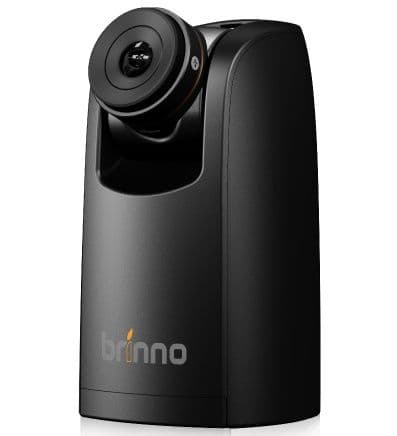

TLC 200 Pro |
| LCD Screen |
1.44" TFT LCD |
| Lens Rotating Angle |
120° |
| Waterproof |
Optional, (In use with Weather Resistant Housing (ATH120)) |
|
|
| Capture Mode |
| Time Lapse |
Auto generation of Time Lapse video |
| Stop Motion |
Optional, (In use with Shutter Line (ATS110)) |
| Motion Activated |
Optional, (In use with Motion Sensor (ATM110)) |
|
|
| Image Sensor |
| Type |
1/3" HDR sensor |
| Dynamic Range |
115db |
| Resolution |
1.3 Mega pixel |
| Pixel size |
4.2um |
| Sensitivity |
3650mV/lux-sec (Ultra good low light quality) |
|
|
| Optics Lens (BCS 295) |
| Type |
CS Mount (Aspherical Glass Lens) |
| Aperture |
F 2.0 |
| Field of View |
112° |
| Focal Length |
14 mm (35mm equivalent) |
| Focus Distance |
Manual focus (Factory setting: 40 cm ~ ∞) |
|
|
| Shooting Setting |
| Scene |
Daylight, Twilight, Night, Moon |
| White Balance |
Auto, Day, Shade, Cloudy, Fluorescent Light (Cool), Fluorescent Light (Warm), Tungsten Light |
| Custom Image |
Exposure, Saturation, Contrast, Sharpness |
|
|
| Recording |
| Time Lapse Video |
Format: AVI |
| Resolution: 1280x 720 |
| Still Image |
Format: JPEG (only for using Shutter Line) |
| Resolution: 1280x 720 |
| Memory Storage |
SD Card (Supported up to 32 GB) |
|
|
| Time Interval |
| ASAP |
0.5 ~ 1 second |
| Custom |
From 1 second to 24 hours |
|
|
| Power |
| Power source |
Battery: 4 AA Batteries |
| DC IN: 5V (Micro USB connector) |
| Battery Life |
2 second time interval, captures 240,000 frames |
|
|
| Camera Body Dimension |
| Size (DxWxH) |
64x 46x 106 mm |
| Weight |
120 g (without batteries) |
| Color |
Black |
